Beneficios del producto
- High luminance / radiance with intense point source
- Broad spectral distribution in the visible and ultraviolet range
- Enhanced UV characteristics available on some types
- Alta estabilidad del arco
Áreas de aplicación
- Laboratory & Analysis
- UV Curing
- Fiber Illumination
- Microscopy
- Solar Simulation
Instrucciones de seguridad
Due to their high luminance, UV radiation, and high internal pressure in the hot state, HBO and HXP lamps may only be operated in enclosed lamp casings designed for their operation. Since mercury is released if the lamp breaks, special safety precautions must be taken. More information is available upon request, or can be found in the leaflet or operating instructions included with the lamp. You can also review our Product Safety Guide.
Due to their high luminance, UV radiation, and high internal pressure in the hot state, HBO and HXP lamps may only be operated in enclosed lamp casings designed for their operation. Since mercury is released if the lamp breaks, special safety precautions must be taken. More information is available upon request, or can be found in the leaflet or operating instructions included with the lamp. You can also review our Product Safety Guide.
Datos técnicos
Información general del producto
Texto corto producto

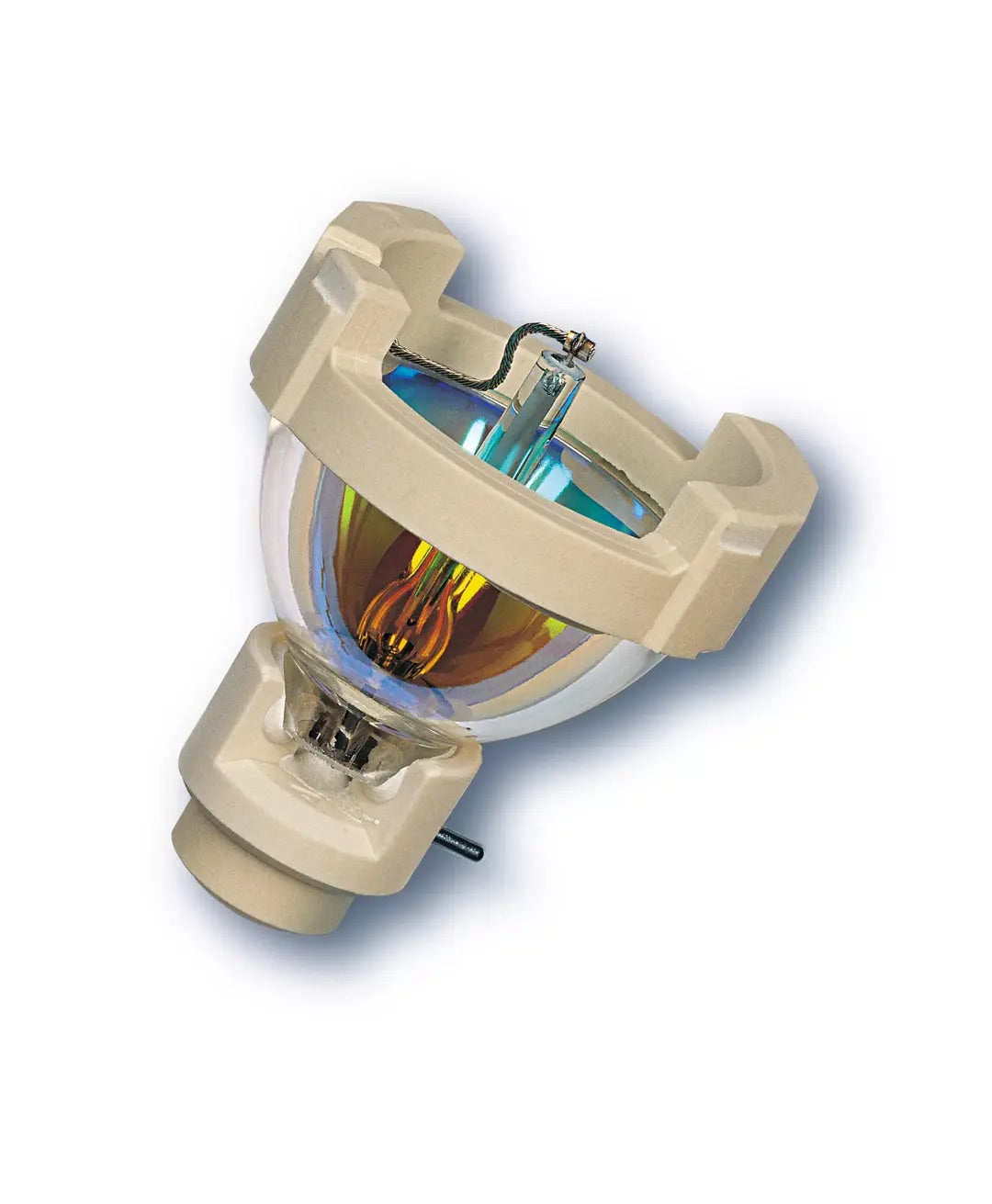

HBO R 103 W/45
NAED5
69311
Description
HBOR103W45 22V 2/CS 1/SKU
Family Brand Name
HBO
Datos eléctricos
Potencia nominal
103 W
Tensión de funcionamiento
20…25 V
Corriente de lámpara
4.0…5.0 A
Tipo de corriente
DC
Datos Fotométricos
Longitud focal
45,0 mm
Physical Attributes & Dimensions
Casquillo (denominación estándar)
FaXP2.5-2x65
Diameter (in)
2.677 in
Diámetro
68.0 mm
Largo
85.0 mm
Peso del producto
120.00 g
Temp. y condiciones de funcionamiento
Posición de quemado
p20
Enfriamiento
Requerido
Duración de vida
Average Rated Life
300 hr
